Longe Range Reception in picture frame design

With the fancy alpha the company Clixxun presents an ideal combination of newest technology and a pleasing design in form of an antenna with picture frame functionality. This integrates itself quasi invisibly into the living landscape or into the office range.

Beside DVB-T & ATSC (USA and Asia) the antenna can be used to receive DAB signals. Of course it is also suitable for the receiption of analog television signals.

Owing to the LRR technology (Long Range Reception) the receiption is possible even in regions that so far have needed an outside or rooftop antenna. Like the vube alpha the fancy alpha also uses low noise and low distortion amplifiers.
The antenna is powered via the USB interface or a DVB-T receiver providing phantom power an optional Power supply (5-12V).

Awards:

Features:

Active antenna / freeview aerial for reception of digital terrestrial TV and radio

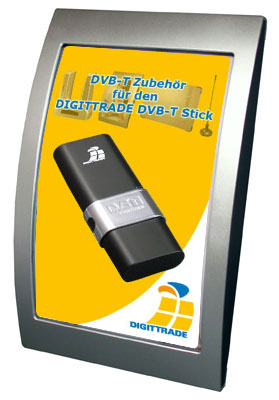

With picture clip functionality for photos of 10 x 15 cm

Optimized range and reception quality, giving up to 60km range depending on location

LRR technology

Reception of DVB-T and DAB

Suitable of vertical and horizontal polarisation

Antenna amplifier with 18dB gain

Distortion free amplifier, noise factor < 1dB

Extremly noiseless

Immune to interference from other signals (e.g. GSM, WLAN, ...)

Power supply by included USB power cable, via phantom powering from your receiver (5-12V) or optional AC adapter

Technical Information:

Frequency range:	47MHz to 862MHz (VHF I, III, UHF)
Power consumption:	ca. 33mA
IEC antenna connector:	(male, 75 ohm)

Dimensions

Product dimensions:	110mm (W) x 177mm (H) x 75mm (D)
Weight:	245g

Delivery:

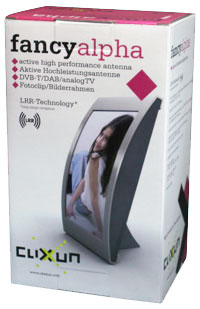

fancy alpha picture frame antenna, USB power cable, coaxial cable, user manual (german / english)
