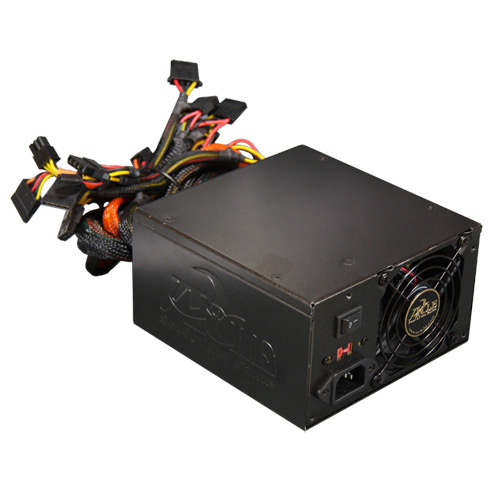

AXLE PLATINUM ATX PC Power Supply 700 Watt

To give gamers the power they need, here are the power supplies from AXLE. They make sure that they are more than a good addition to the AXLE VGA cards. Thanks to the standardized construction and the 20 / 24 pin connector they are compatible to all current mainboards and ATX cases. With the various electrical connectors this power supply get a large scope for any extra field of application.


In addition there are five protection mechanisms which make sure to be a dependable power station for your computer. Associated with a super-silent, temperature-sensitive regulated and particularly powerful fan the power supply of AXLE is an essential component for any PC, no matter if you use it at the office or for gaming.

The AXLE PLATINUM 700 watt power supply assures with a long life and a lot of use possibilities. The 140mm super-silent fan protects the power supply for overheating and provides a stable operating.

Features

700W Output Capacity

80% Power efficiency

Equal to 80plus standard

1x 140mm fan

Temperature dependent fan control

Platinum Series AX-P700P

Dimension: 150 x 86 x 157 mm

Voltage

+3.3V - 28A

+5V - 28A

+12V - 26A

+5VSB - 2.5A

Electrical Connectors

4x Sata

6x IDE

1x FDD

1x 4+4 Pin

2x PCI-E

1x 6+2 Pin

1x 20+4 Pin

1x 4 Pin

Protection Function

Over voltage protection

Short-circuit protection

Capacity overload protection

Under voltage protection

Overheating protection

Delivery:

Power Supply, Power Cable, Cable Strap, Case Screws, User Manual
