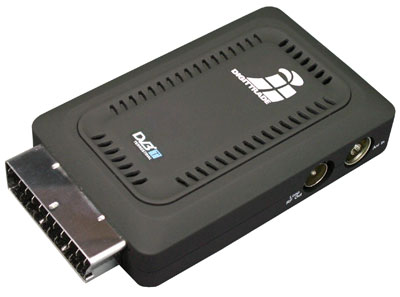

External design DVB-T / TV scart receiver from DIGITTRADE for the reception of all free-to-air signals on every TV device. DVB-T for every TV The DIGITTRADE DVB-T Scart Receiver enables the reception of the digital terrestrial tv signal: DVB-T on every TV; no matter whether CRT, TFT or Plasma! High quality chipset! The same chipset is used for the DIGITTRADE DVB-T USB Stick that owns many awards and a lot of very good test reports. It's so easy to use - just plug the device into the scart socket at the back of your TV and enjoy watching TV in digital image and sound quality. DVB-T - make it easy! Installation in 2 minutes Don’t waste your time with the manual search of analogous TV stations or a complicated programming of satellite facilities. Just connect the receiver with your TV, attach the included antenna, use 'Autoscan' to find all digital channels and enjoy the new form of television! Easy handling Thanks to the pre-installed menu guide the handling is easily possible for beginners as well as for technology experts. Small and handy Bulky and unmovable TV boxes belong to the past! With his measures of 97mm x 50mm x 20mm in the classy DIGITTRADE design this DVB-T receiver is one of the smallest in his class! Highlights: digital terrestrial and analogues Signal on TV Electronic program guide (EPG) videotext supports subtitle progamming favorite lists free sortable channel extensive information interface multilingual OSD 4:3 / 16:9 resolution automatically search 360 ° infrared remote control receiver timer function Extension information interface The information interface shows you the currently running and following broadcast, the television station name, the time, the signal power and the television station selected at the moment. Timer function You would like to be woken up by your favorite radio or TV television station or miss no more favorite TV broadcast? Set the programmable timer for the desired time and the television station and the DIGITTRADE DVB-T Scart Receiver already switches on itself automatically. EPG Thanks to the electronic program guide you are informed at any time about the actual and future TV broadcast. The EPG lists the complete TV schedule of all broadcasters up to 5 days. Besides a detailed description of every TV broadcast is available to you.

Awards:

Features:

digital terrestrial and analogues Signal on TV

DVB-T channel bandwidth 7/8 MHz

Aspect ratio: 4:3 / 16:9

Autoscan

Videotext

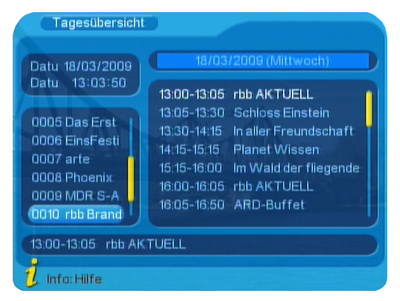

EPG (electronic program guide)

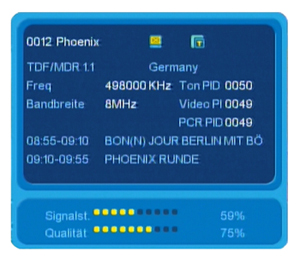

Extensive information interface (signal strength, running TV broadcast, following TV broadcast, television station name, sound)

Free sortable channel

Favorite lists

multilingual OSD (german, english, spanish uvw.)

360 ° infrared remote control receiver with LED

Technical Features:

Bandwidth:	7/8 MHz
Audio-Decoder:	MPEG-2 layer I & II mono / stereo / dual channel
Video-Decoder:	MPEG-2
Average power consumption:	ca. 5 Watt
Standby:	< 1 Watt
Frequency Range:	VHF (174 to 230 MHz), UHF (470 to 862 MHz)
Antenna power:	5V
Power supply:	230V/50Hz
Output voltage:	12V

Dimensions

Measures:	105mm (L) x 60mm (B) x 23mm (H)
Weight:	55g

Delivery:

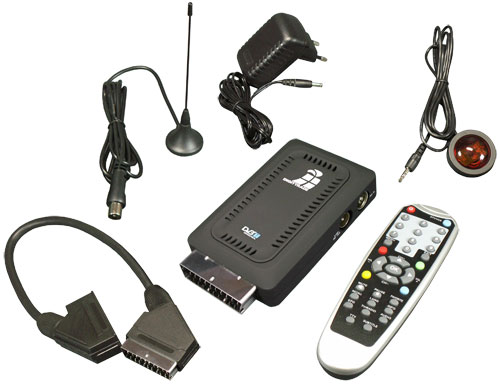

DIGITTRADE DVB-T scart receiver, infrared receiver, infrared remote control (incl. battery), mini antenna with magnetic base, power supply, scart extension cable, user manual
